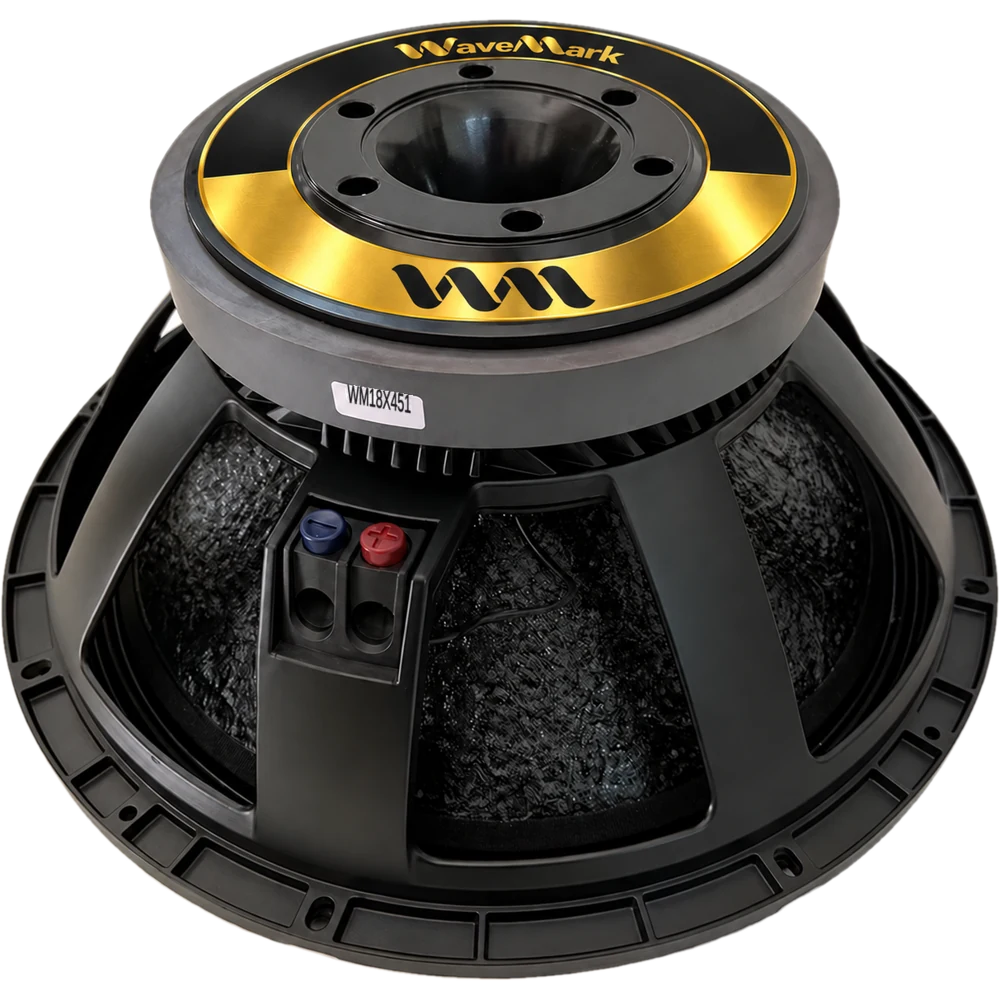

Wavemark WM18X451 18 inch subwoofer with gold Wavemark magnet badge, angled rear view
Model WM18X451

WM18X451 18" Heavy Bass Driver

18" heavy bass subwoofer · 1800W RMS · 3600W max · 8Ω

£345per driver

Imported direct from the factory. 19.2p per rated watt.

RMS power
1800W
Max power
3600W
Voice coil
115mm (4.5")
Impedance
8Ω / 4Ω
Spec sheet (PDF) Full specifications

Power for scoops and folded horns

An 18" driver specified for loaded cabinets: 1800W RMS and 3600W max into 8Ω, a 115 mm (4.5") inside/outside copper voice coil on a glass fibre former, a ferrite motor, a double spider and a die-cast aluminium basket. £345 per driver.

We import it direct from the factory rather than through a distributor, which is how it comes in at 19.2p per rated watt. A 4Ω version is available on request, and full Thiele/Small data is available on request for anyone modelling a box.

The build

What you are paying for, part by part.

115 mm

4.5" copper coil

Inside/outside copper winding on a glass fibre former. A larger coil has more surface area to shed heat, which limits power compression on long sets.

2× spider

Double spider

Two spiders instead of one keep the coil centred in the gap at high excursion and under the back-pressure of a loaded cabinet.

£345

Price

19.2p per rated watt, direct. Hear it before you buy in our listening room.

Technical specifications

Supplied as 8Ω as standard, with 4Ω versions available on request. Full Thiele/Small parameters are available on request.

Hear it, then decide.

1800W RMS, 4.5" copper coil, double spider, £345. Book a listening room visit or download the spec sheet. Download the spec sheet
